High Strength PVDF Aluminum Composite Panels For Exterior Curtain Wall Construction
The PVDF aluminum composite panel is composed of two materials (metal and non-metal) with completely different properties. It not only retains the main characteristics of the original component materials (metal aluminum, non-metal polyethylene plastic), but also overcomes the shortcomings of the original component materials. Obtained many excellent material properties, such as luxury, colorful decoration, weather resistance, corrosion resistance, impact resistance, fire resistance, moisture resistance, sound insulation, heat insulation, shock resistance; light weight, easy processing and forming, easy handling and installation, etc.
Therefore, PVDF aluminum composite panel is widely used in various architectural decorations, such as ceilings, pillars, counters, furniture, telephone booths, elevators, storefronts, billboards, factory walls, etc., and PVDF aluminum composite panel has become one of the three major curtain walls (natural stone, glass curtain wall, metal Curtain wall). The representative of metal curtain wall. In developed countries, aluminum-plastic panels are also used in the manufacture of buses and train cars, sound insulation materials for airplanes and ships, and design instrument cabinets.
PVDF aluminum composite panel is composed of multiple layers of materials, the upper and lower layers are high-purity aluminum alloy panels, the middle is a non-toxic low-density polyethylene (PE) core board, and a protective film is pasted on the front side. For outdoors, the front surface of the aluminum-plastic panel is coated with a fluorocarbon resin (PVDF) coating. For indoors, the front side can be coated with a non-fluorocarbon resin.
| Specifications Of PVDF Aluminum Composite Panel | |
| Normal Width | 1220mm, 1250mm, 1500mm, 2000mm and custom accepted |
| Panel Length | 2440mm , 3000mm, 5000mm,5800mm ,normally within 5800mm. for 20ft container custom accepted |
| Panel Thickness | 2mm 3mm 4mm 5mm 6mm 8mm ... |
| Aluminum Alloy | AA1100,AA3003,AA5005 ...(Other Grade On Requirement) |
| Aluminum Thickness | 0.21mm to 0.50mm |
| Coating | PE coating PVDF coating, NANO, Brush surface, mirror surface |
| Core Material | Recycle PE Core/Fireproof PE Core/Unbreakable PE Core |

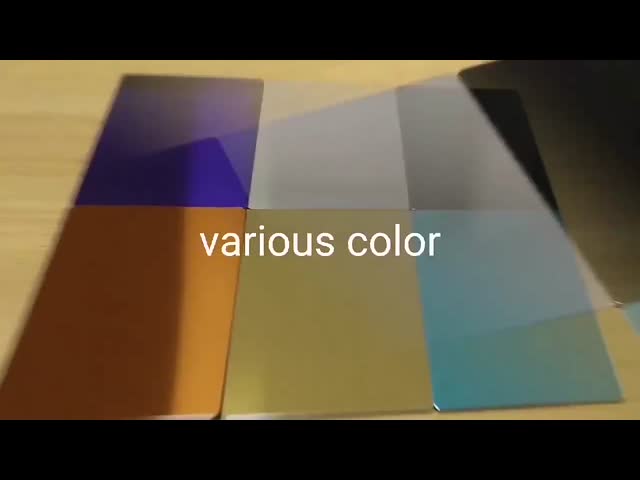

| Color | Metal/Matt/Glossy/Nacreous/Nano/Brushed/Mirror/ Granite/Wooden |
| Delivery | Within two weeks after receiving deposit |
| MOQ | 600 Sqm per color for PVDF, 500 Sqm for PE |
| Brand/OEM | Alumetal/Customized |
| Payment Terms | T/T, L/C at sight, D/P at sight,Western Union, Sinosure |
| Packing | FCL:In bulk;LCL:In Wooden pallet Package;according customers’ requirement |
Click Below to Download Color Chart
Alumetal Color Chart.pdf
Q1. What is the minimum order quantity?
500Sq M for aluminium composite panel for one color with 1220 mm*2440 mm size.
Q2. What is your terms of payment?
T/T 30% deposit in advance; the balance paid should be paid according to the copy of B/L.
Q3. How about your delivery time?
Generally, it will take 15to 20days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
Q5. Why can I trust you and place order with you?
1. We are manufacture and supplier of aluminum composite panel in china with over 10 years's experience.
2. We keep fastest delivery. Since we have perfect production equipment.
